Produktbeschreibung

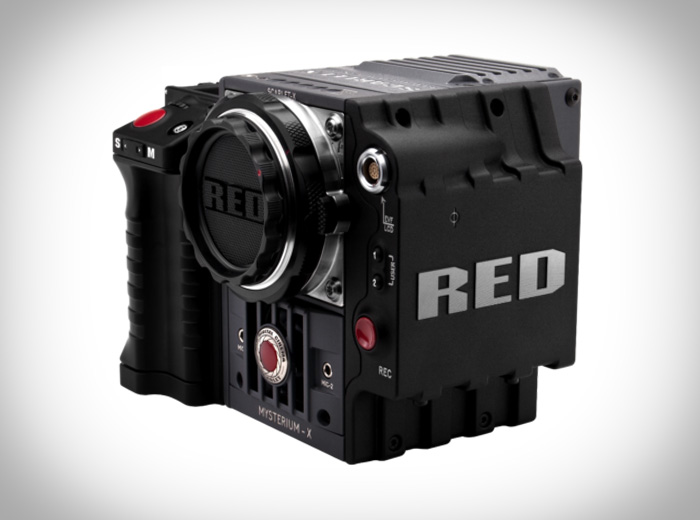

Die RED 5K Scarlet Mysterium X ® (Body)
Technische Daten:
PIXEL ARRAY 5120 (h) x 2700 (v)
MAX IMAGE AREA 5120 (h) x 2700 (v)
DYNAMIC RANGE 13.5+ stops, up to 18 stops with HDRx®
S/N RATIO 66 dB
LENS COVERAGE 27.7 mm (h) x 14.6 mm (v) = 31.4 mm (d)
MAX DEPTH OF FIELD Equivalent to S35mm (Motion)/APS-H (Still) lenses
PROJECT TIMEBASE 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.97 fps, all resolutions
REDCORDING FRAME RATES 1 1–12 fps 5K
1–30 fps 4K
1–48 fps 3K
1–60 fps 2K
REDCODE® COMPRESSION 1 Compression choices of 18:1 to 3:1
REDCODE RAW
ACQUISITION FORMATS 2 5K (Full Format, 2:1, 2.4:1, 16:9, 1.22:1, and Anamorphic 2:1, 1.33:1)
4K (Full Format, 2.4:1, 16:9)
3K (Full Format, 2.4:1, 16:9)
2K (Full Format, 2.4:1, 16:9)
DELIVERY FORMATS 3 4K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin)
2K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin)
1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG
Avid AAF, MXF. 1080p 4.2.0, 720p 4:2:0 : H.264, .MP4
PROGRAM OUTPUT 3G-SDI (HD-SDI) Clean Feed
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OUTPUT 3G-SDI (HD-SDI) and HDMI with Frame Guides and Look Around or Clean Feed
1080p 4:2:2, 720p 4:2:2 SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
